The Centaurus series is our most affordable industrial level cnc series. It employs many of the design and operating features found on our larger series machines for reliability, but with linear tool changing stations vs onboard carousel tool changer on the Orion series. The Centaurus series designed for nested base manufacturing specifically for, but not limited to cabinetry and closet systems with in-line 32mm line boring system in X and Y-axis. It is equipped with Syntec industrial plc controller rich with standard industry controller features and best of all, it's non PC-Windows reliant!



Select the Tabs menu for details

Customers Gallery-Videos
Features-Options
Specifications
Vacuum Pump
Pre-Installation Guide

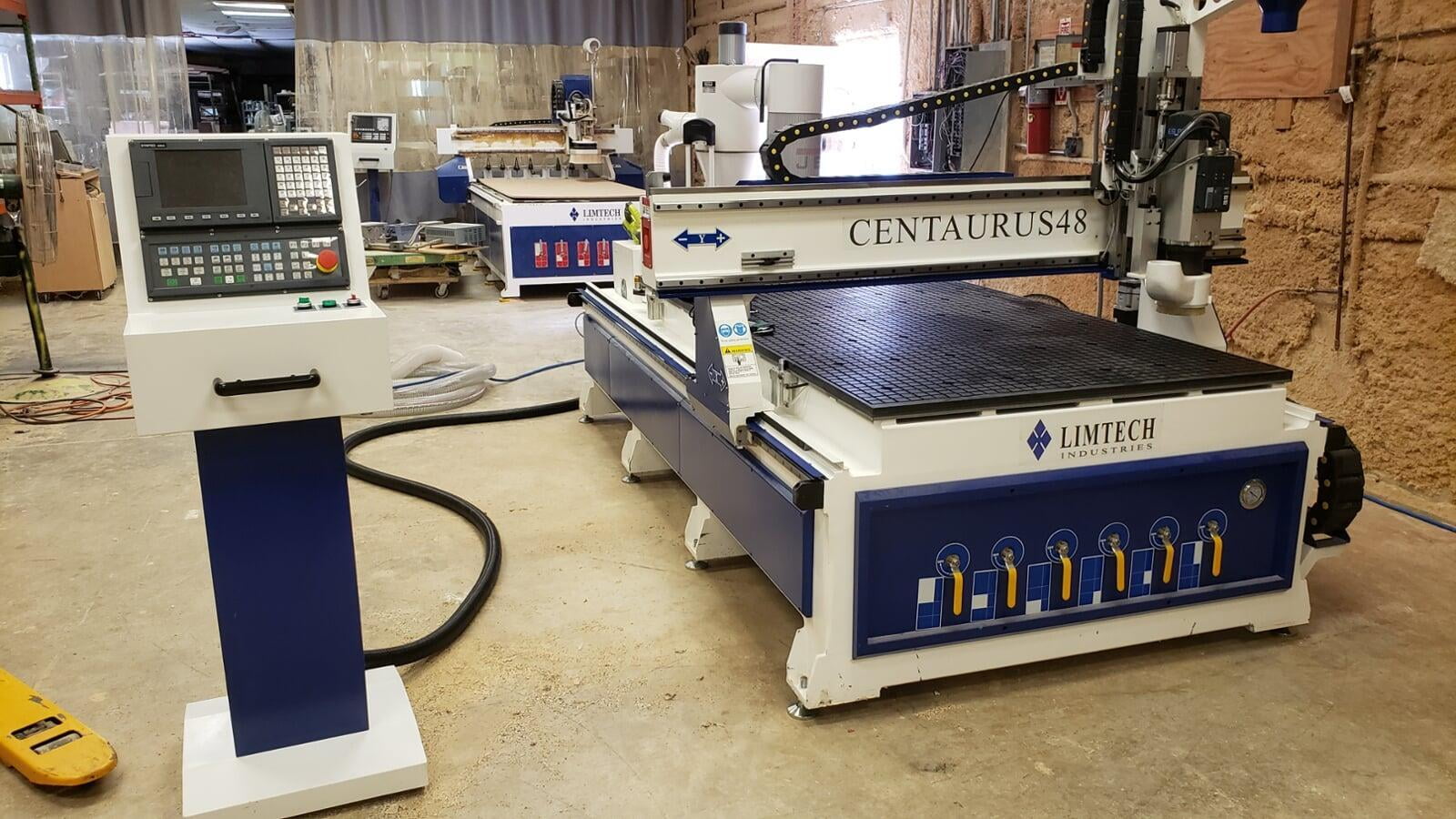

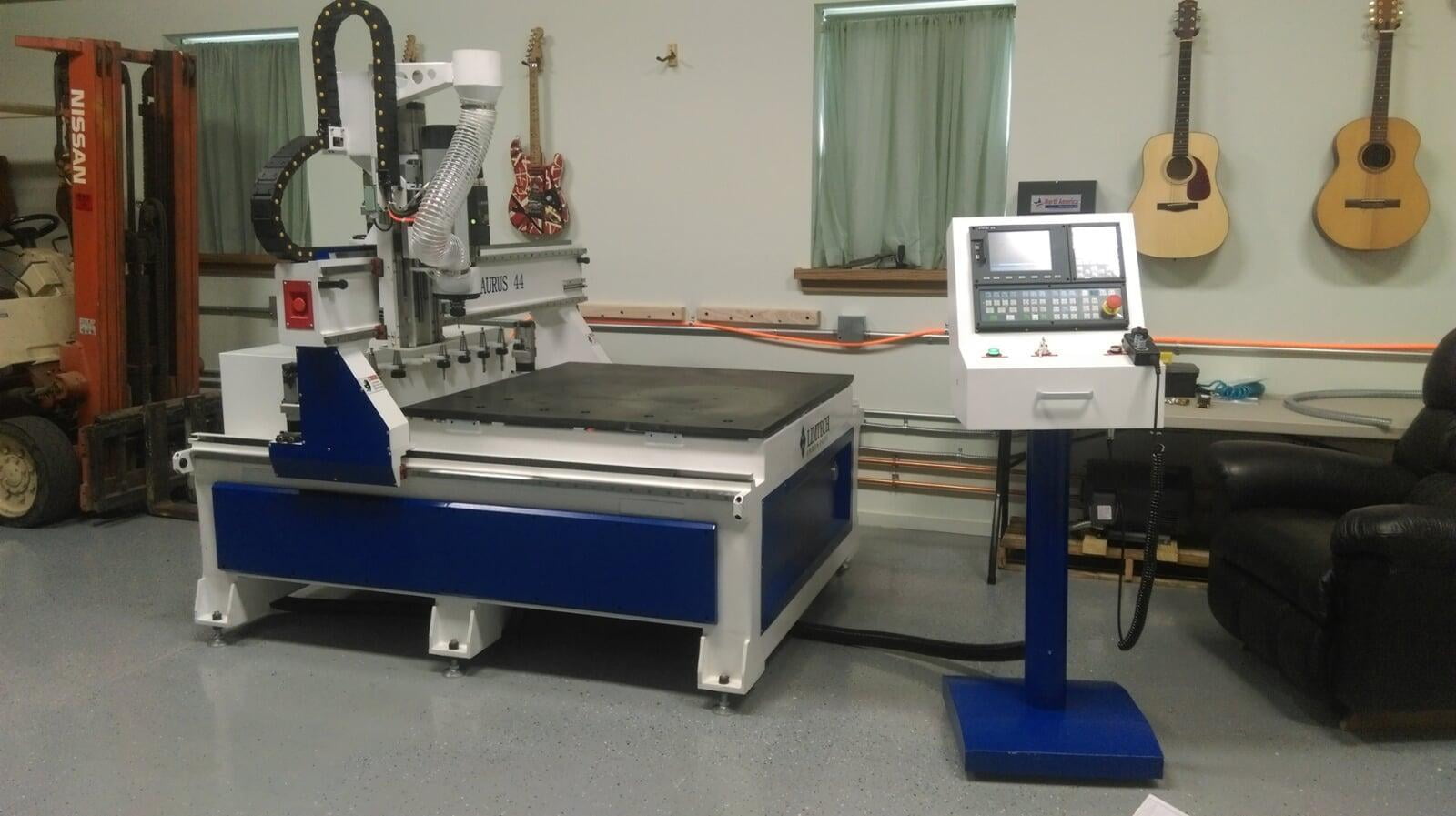

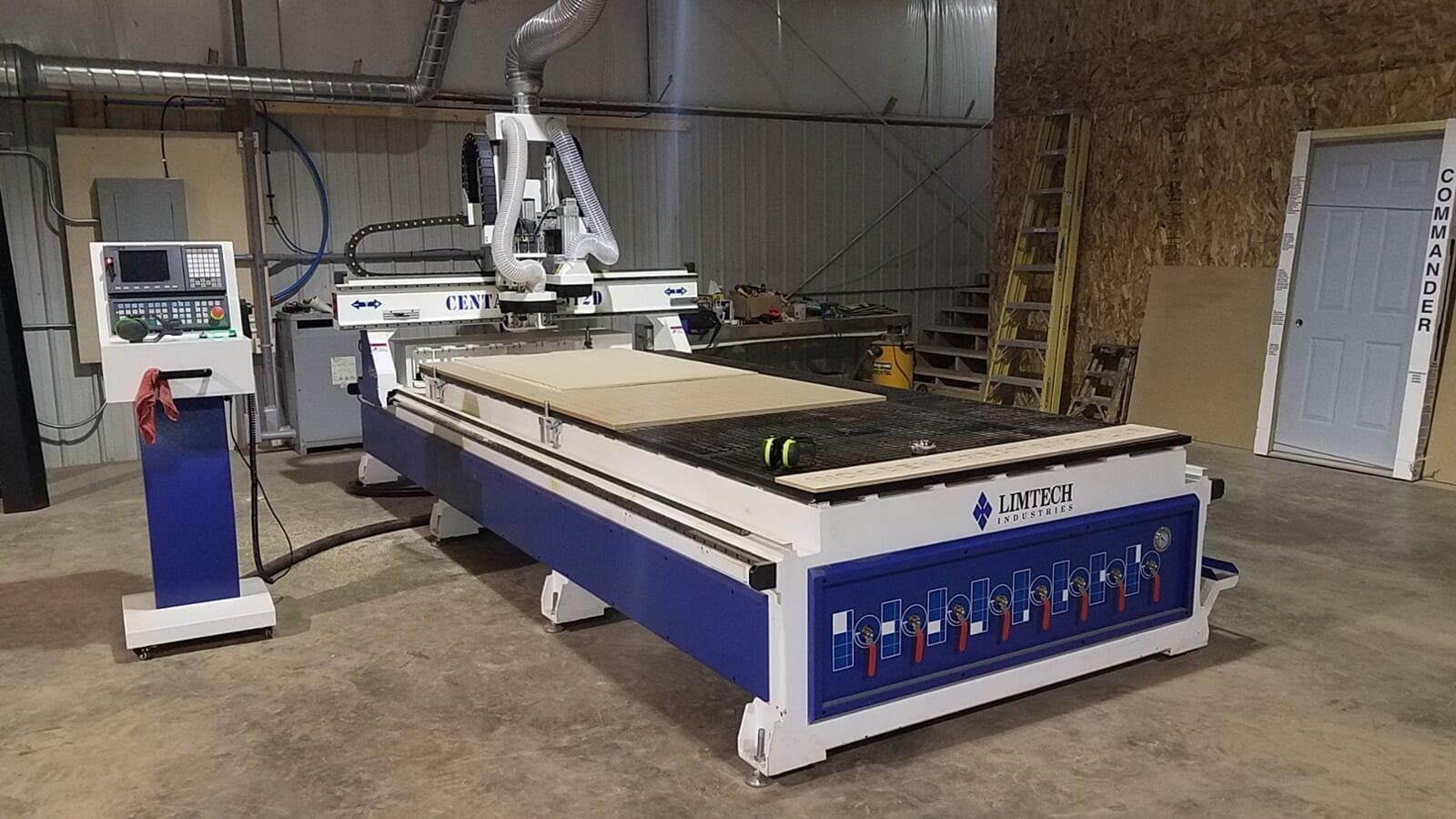

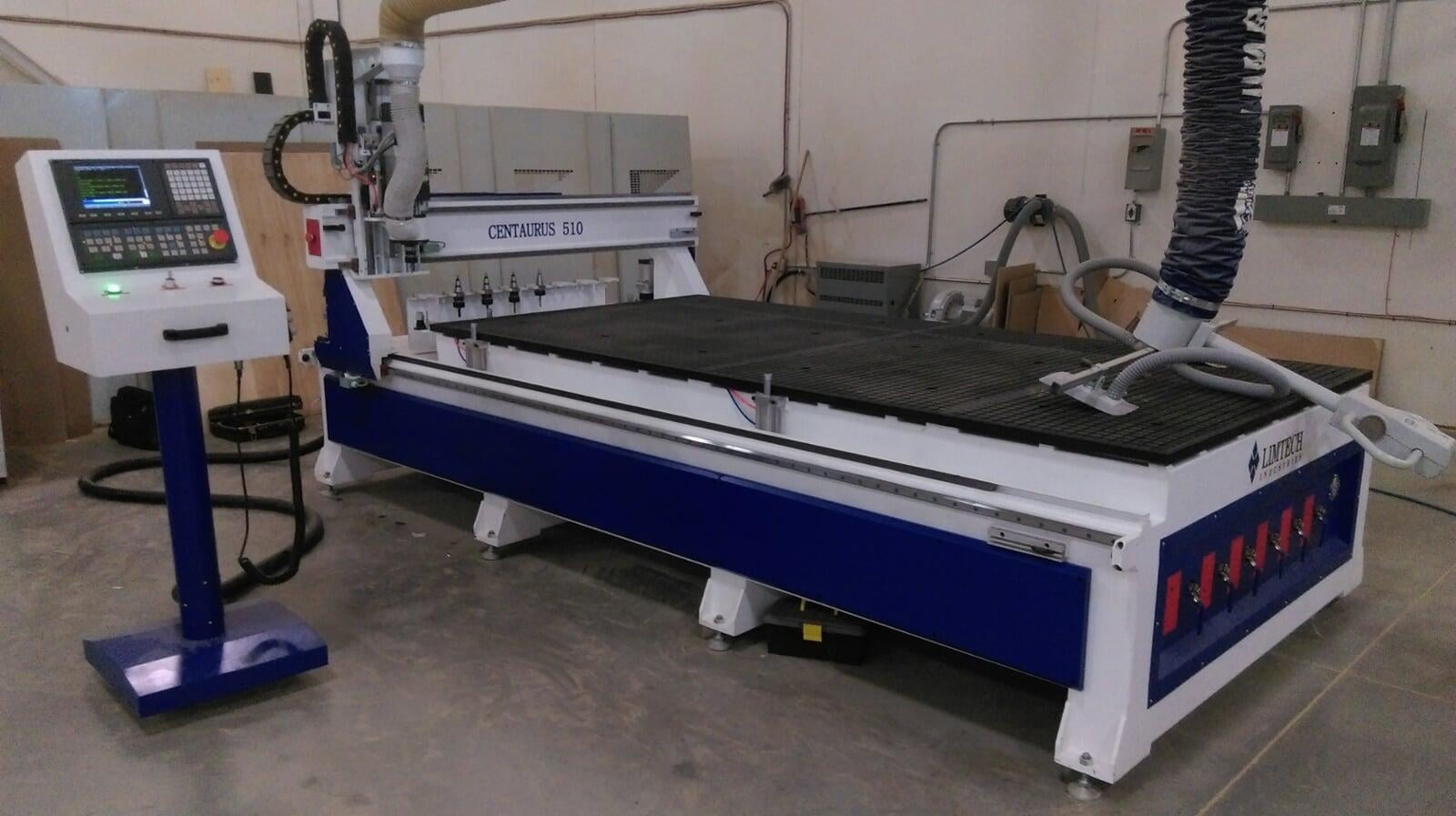

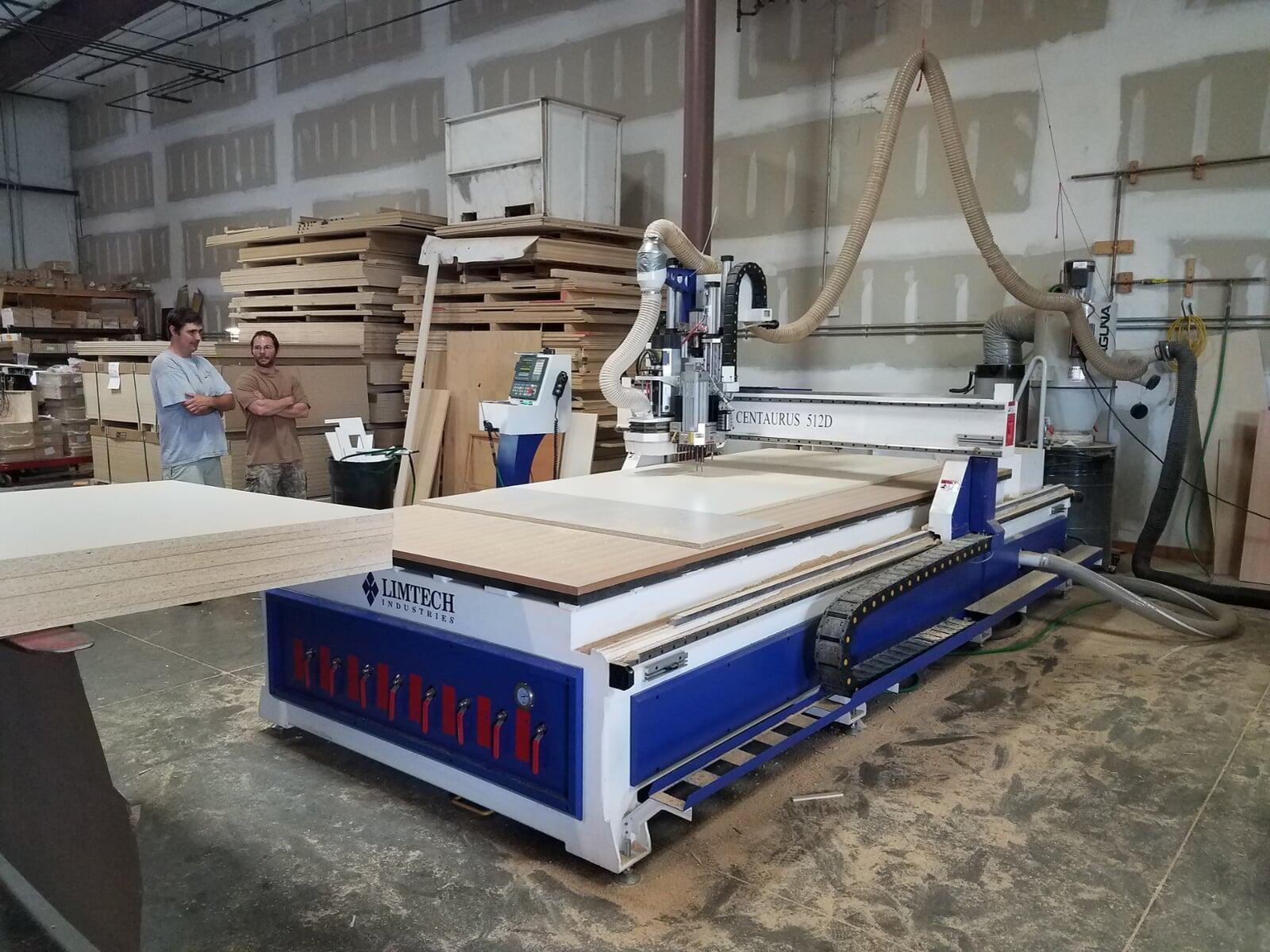

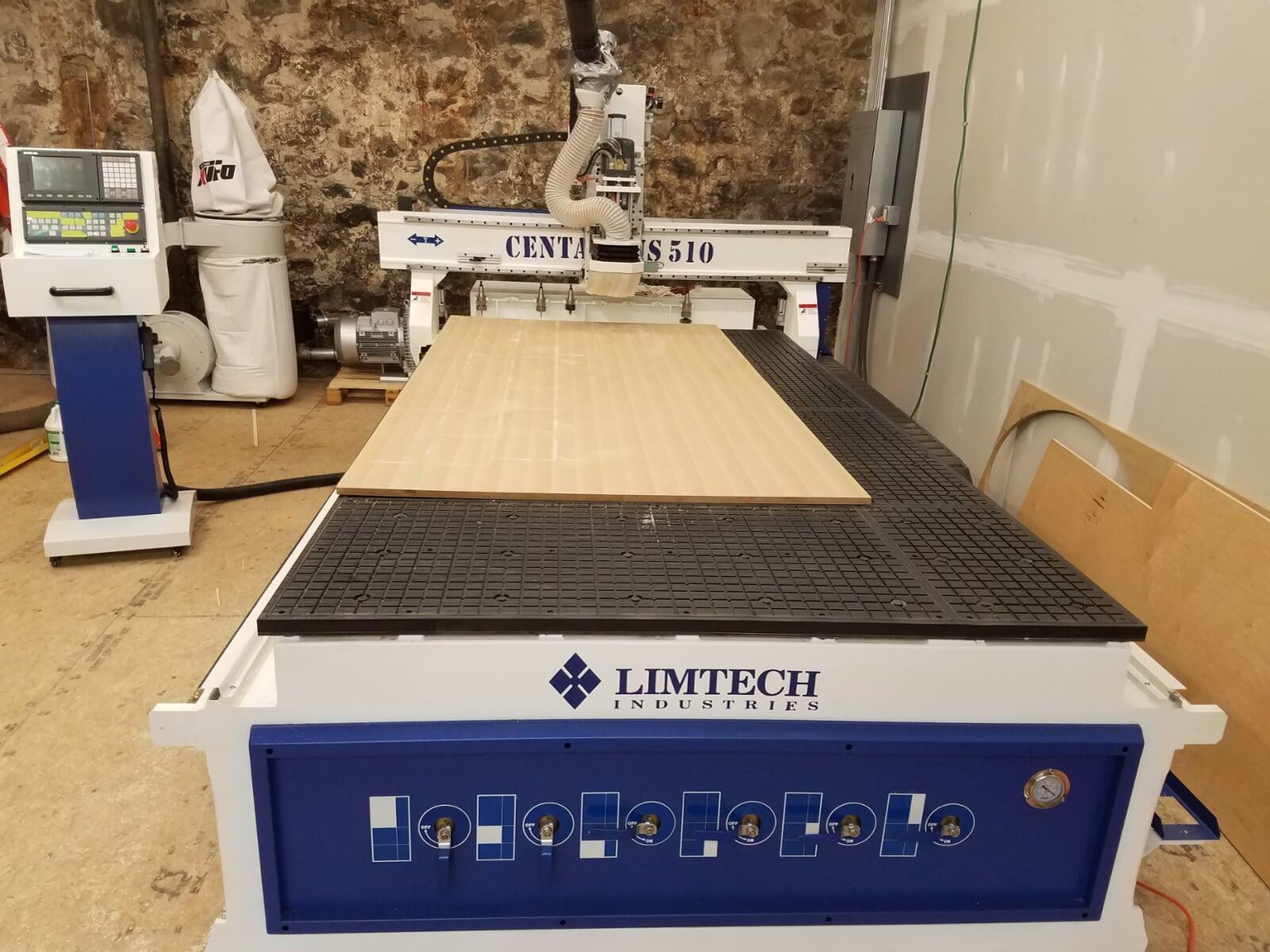

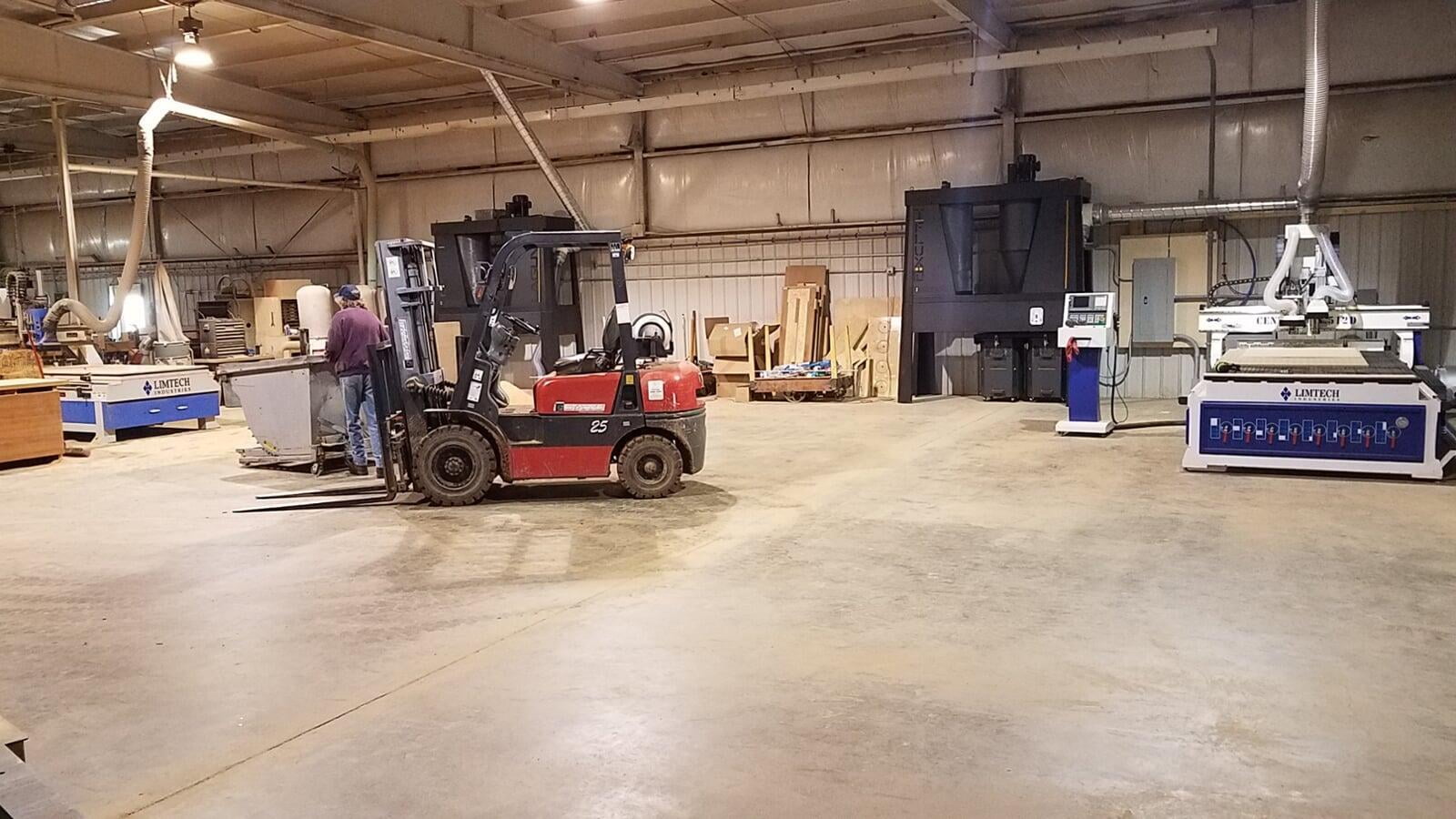

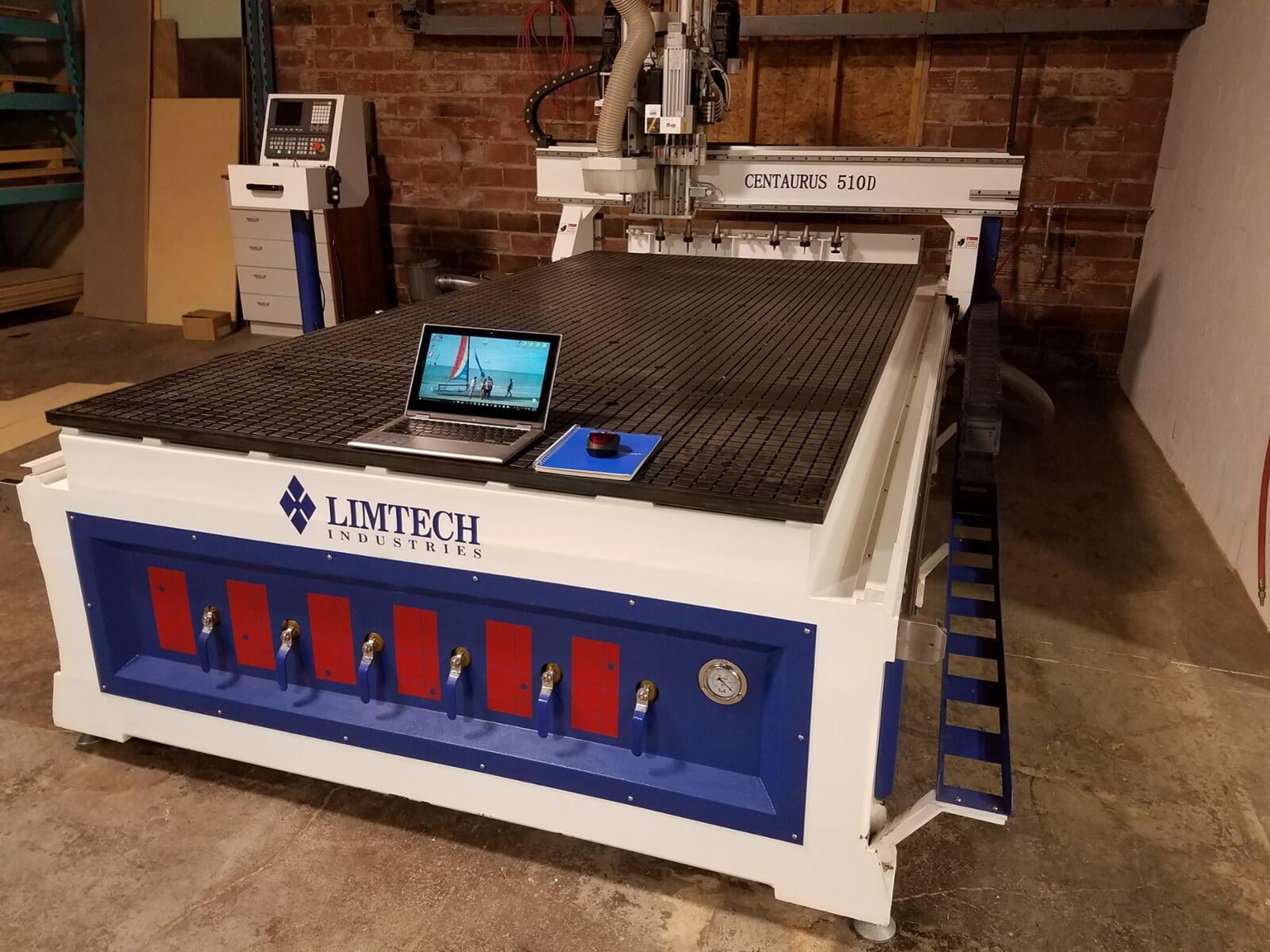

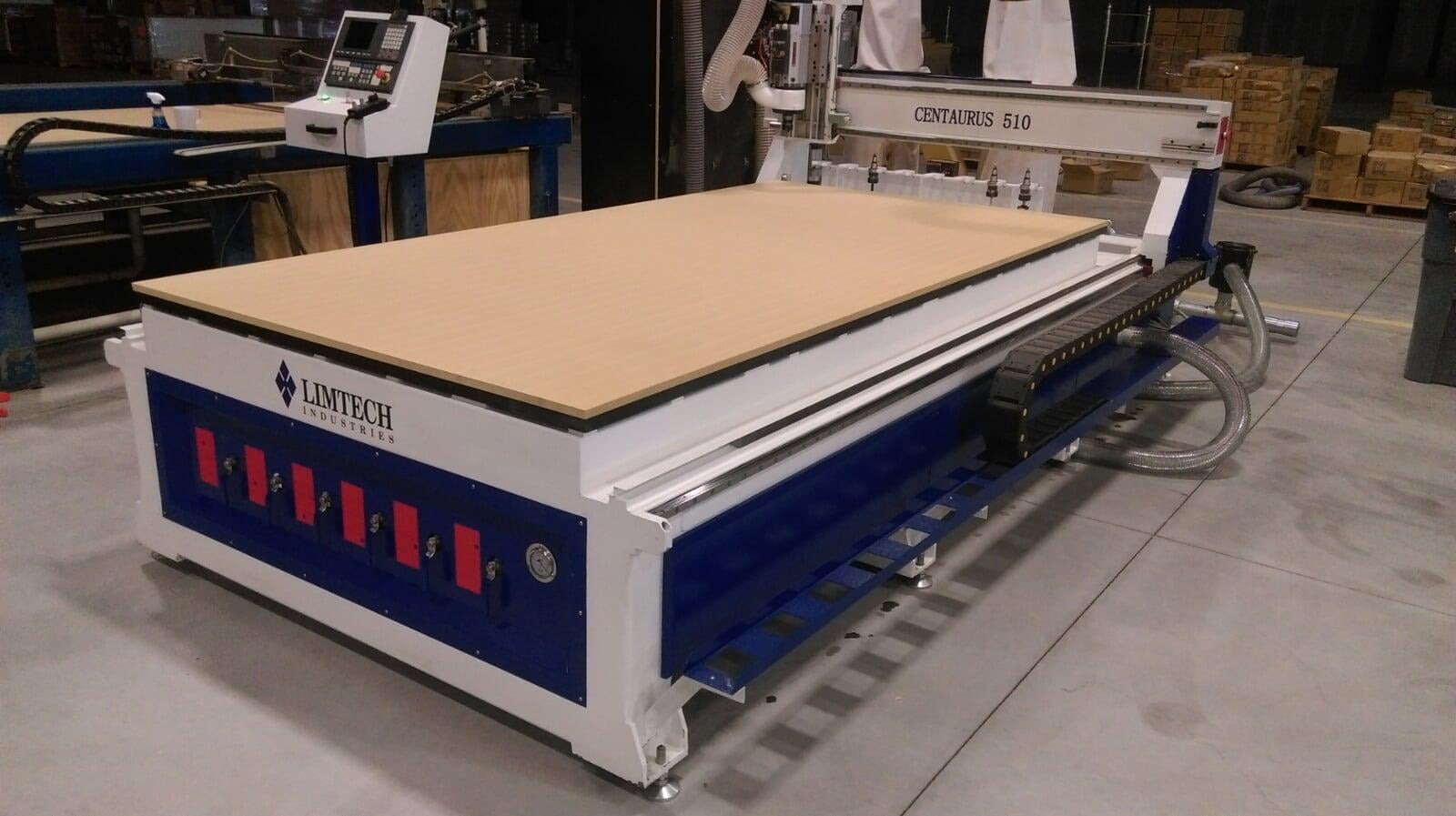

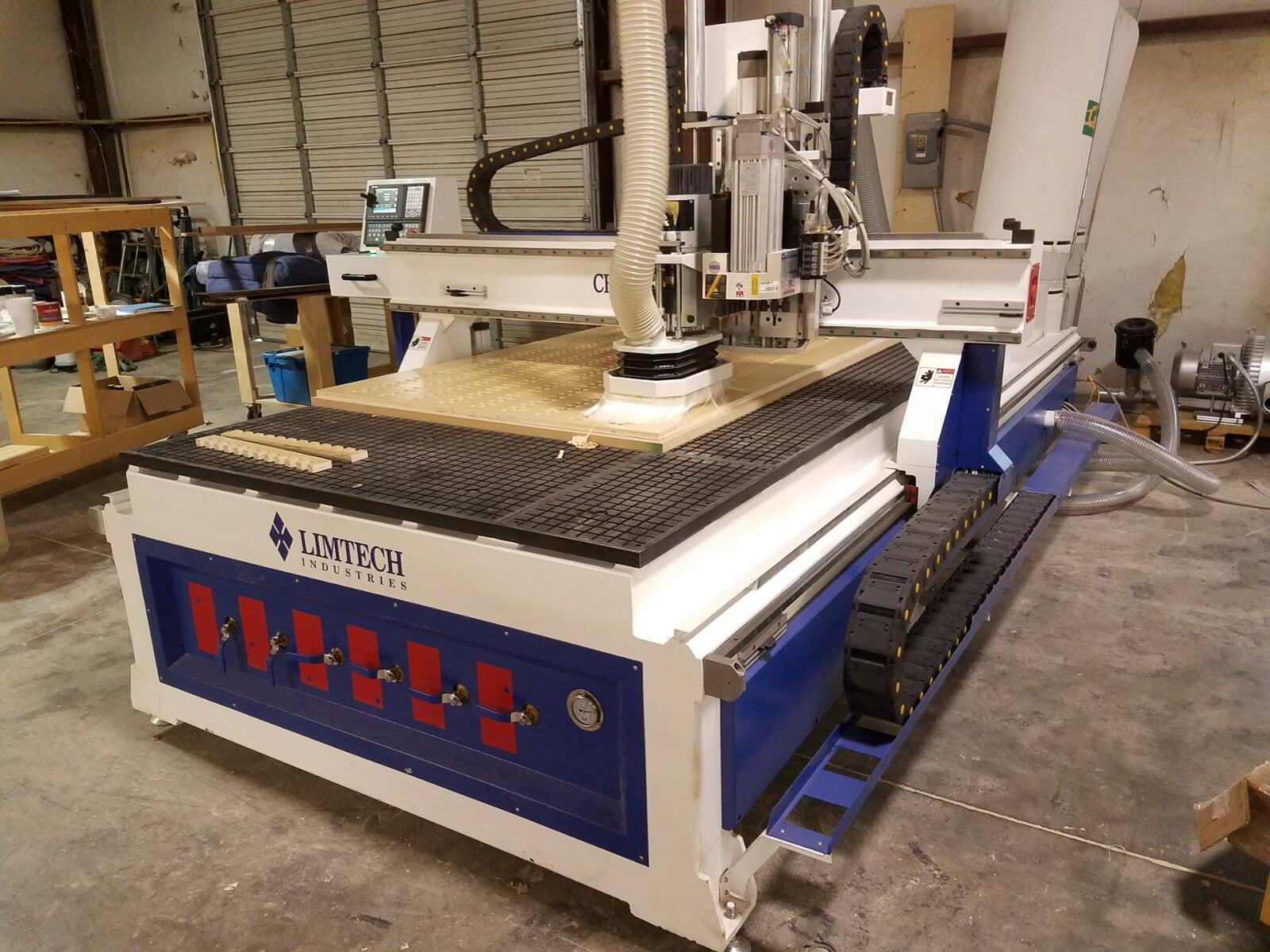

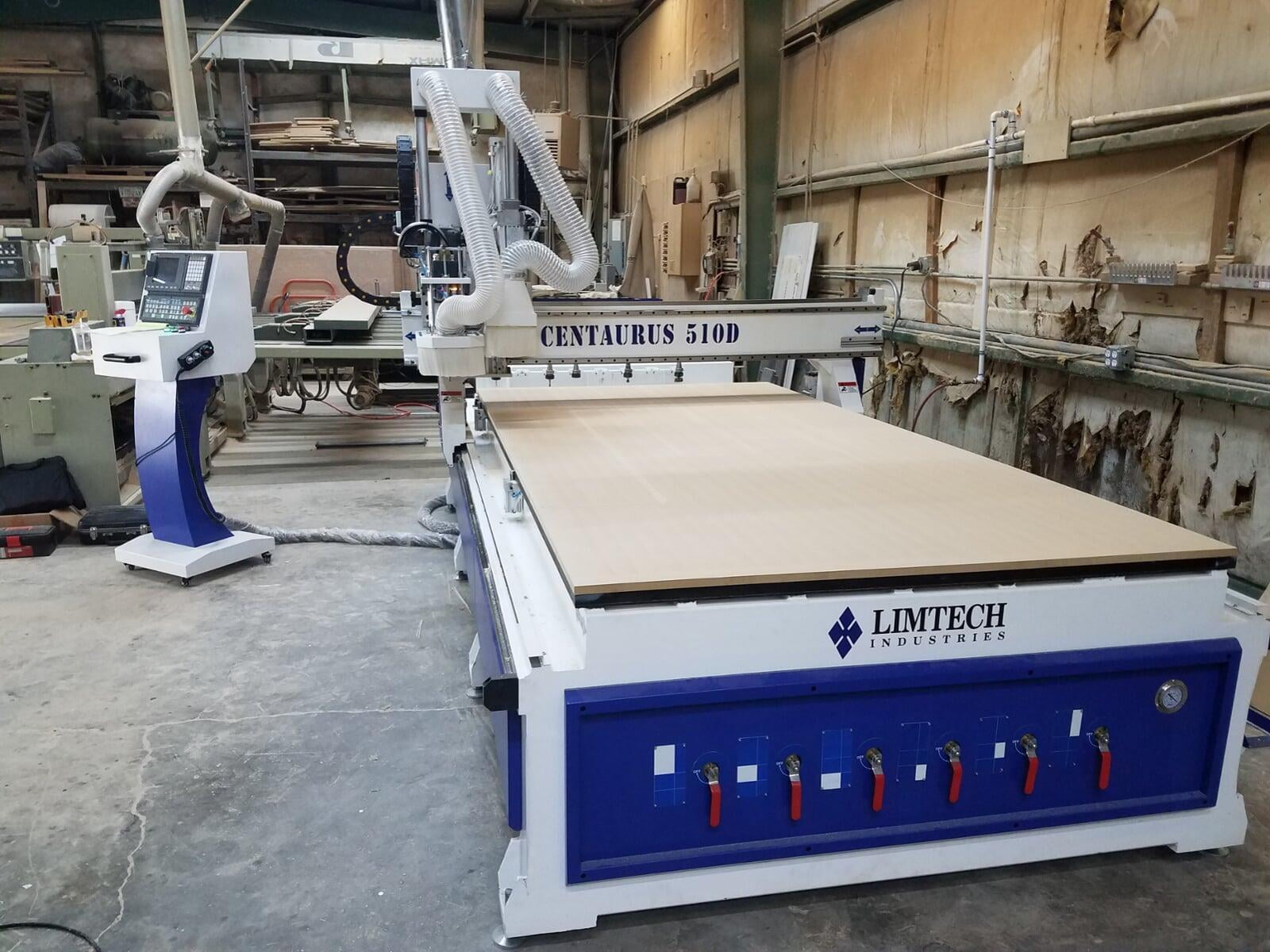

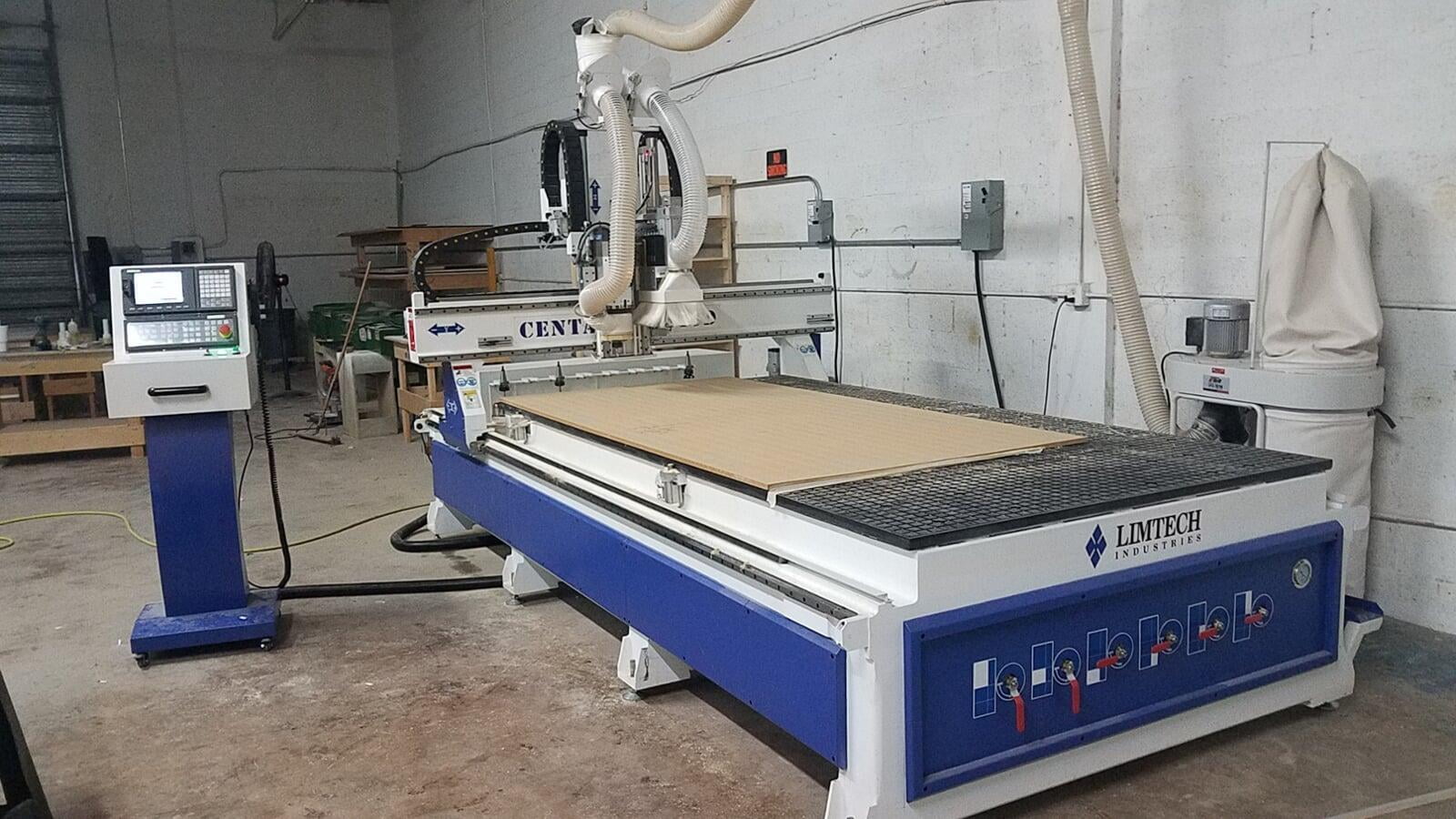

Customers Gallery-Videos
Features-Options

Standard Centaurus series Features & Options - subject to change without notice

Features
Table
 Steel chambers construction with finished grid vacuum phenolic table top
 Reference pins
Minimum of three (3) automatic table top reference pins for stock materials
 Vacuum zones
Common material sizes vacuum zone system for 5'x5', 4'x8', 5'x8', 5'x10' and a few other smaller sizes
Spindle No. 1
 HSD maintenance-free, air-cooled 12hp ISO 30 spindle with ER 32 collet system
 Spindle speed
From 1,000 ~ 24,000RPM in increment of 1,000
 Quick change-release
Spindle manual tool release and insertion
 Spindle brush
Automatic floating spindle brush design with manual brush override feature
 Manual operation
Manual spindle ON-OFF feature
Tool changer
 8-position linear style automatic tool changer
 Tool height calibration
Automatic tool height calibration and registration
 Vacuum pump
10hp two stage regen type with accessories
Syntec controller features
 Non PC-Windows reliant, non proprietary software-hardware system
 Programming language
Standard G-code, works with any 3rd party software that generates G-codes
 Communications
Approx. 250Mb internal memory with unlimited file size via USB & Ethernet
 Modes of operation
Automatic, MDI, Manual
MPG
 Manual Pulse Generator for fine manual movements during set-up, checking, and testing in automatic mode
 Automatic Homing
Automatic homing mode for individual or all axis with a push of a button
 Spindle override
Independent spindle RPM manually override during live operation
 Feed rate override
Independent cut feed rate manually override during live operation
 Rapid override
Independent rapid-traverse manually override during live operation
 Monitor
8" industrial monitor with current program check-monitoring system
 Inputs
Full alpha-numeric keypad with two USB ports and Ethernet
 Work coordinate offsets
Global, G54 ~ G59 standard with G54P1 feature
 Tool height registrations
More than 100 tool height registrations offering full flexibility for programming assignments
 Tool diameter compensations
Tool diameter G41-G42 compensations, for customers using sharpened tools without having to re-program parts
 Canned cycle
 Canned cycles using canned cycle codes to shorten program lengths, especially with 32mm line boring system
 Onboard PLC diagnostics
For troubleshooting with I/O status
 Onboard parameters
For fine tuning or adjustments of the machine's performance and accuracy
 Manuals
Operators and Maintenance manuals
 System recovery
 Full system recovery provided during every new machine installation
Available Options
 32mm line boring
HSD 9-vertical drills on 32mm centers in L-shape configuration for X and Y axis drilling operations
 Vacuum pump
15hp@50Hz or 17hp@60Hz, up to 33hp two-stage regen system with more than 1,000Cfm
Specifications

Standard Centaurus series specifications - subject to change without notice


Frame construction
 Welded structural steel, heat treated and stress relieved for rigidity and stability
Drive configuration
 X-axis
Dual 750w servomotor with planetary gearbox and helical rack-pinion system
 Y-axis
750w servomotor with planetary gearbox and helical-pinion system
 Z-axis
 750w servomotor with ballscrew with Z-axis servomotor braking-locking
Linear guide rails

 X-axis
Hiwin-Abba 25mm square type
 Y-axis
Hiwin-Abba 25mm square type
 Z-axis
Hiwin-Abba 25mm square type
Axis field stroke

X-axis
 Full-beyond table coverage
Y-axis
Full-beyond table coverage
Z-axis
Up to 300mm (12")
Cable protection
Enclosed cable chain tracks to prevent dust, wood and metal chips from damaging the cables
Maximum cut feed rate
 Up to 800 inch/min
Maximum rapid-traverse rate
Up to 1,600 inch/min
Lubrication Automatic lubrication with volume and times frequency settings

Standard Centaurus series shipping & floor plan info - subject to change without notice

 Centaurus 48 (4'x8' table size)
Centaurus 510 (5'x10' table size)Centaurus 512 (5'x12' table size)
Weight (approx)
 Gross - Net weight
4,000 lbs.
5,500 lbs.
6,000 lbs.
 Dimensions (inches)
 Shipping (LxWxH)
 131 x 80 x 65"
 155 x 92 x 65"
 167 x 92 x 65"
 Floor plan
Centaurus 48 download
Centaurus 510 download
Centaurus 512 download
 Dust extraction
 Incoming flex hose diameter
4" for single spindle, 8" two spindles
4" for single spindle, 8" two spindles4" for single spindle, 8" two spindles
 Volume recommended
3,000 ~ 4,000 Cfm
3,000 ~ 4,000 Cfm3,000 ~ 4,000 Cfm
Power & Air requirements
 Machine: 220V, 3-phase
 50Amp, consumption approx 35Amp
50Amp, consumption approx 35Amp50Amp, consumption approx 35Amp
 Machine: Dry air
90Psi @ 16Cfm consumption rate
90Psi @ 16Cfm consumption rate90Psi @ 16Cfm consumption rate
 Vacuum pump: 220V, 3-phase
10hp @35Amp, 17hp @60Amp
10hp @35Amp, 17hp @60Amp10hp @35Amp, 17hp @60Amp
Vacuum Pump






The two-stage 10hp regen vacuum pump comes standard with our Centaurus and Gemini series. It is low-maintenance, no messy oil lubrication, or belts to replace.


We normally offer free upgrade to the 15hp (15hp@50Hz, 17hp@60Hz)


Up to 33hp with more than 1,000Cfm upgrade is available.









Existing customer with Centaurus 5'x12' table size demonstrating vacuum hold down using TWO 3/4" mdf sheets with the entire table surface wide open and it's holding down a piece of material that wouldn't budge.


Normally you'd just need to use one 3/4" mdf for your spoilboard.

Pre-Installation Guide

ALL new customers will receive detail Pre-installation manual/guide well in advanced covering delivery schedule, preparations and requirements.

However, below are some basic steps for reference only.



1. You will be informed in advanced regarding your cnc delivery schedule.

2. If required, you must schedule a rigger to be onsite to unload and position the cnc into your facility

3. Once the cnc is in place, you must arrange for the power, air, dust extraction to be connected to the cnc. See Specifications tab above for details.

4. Ensure that you have the software, tooling, materials available for the cnc set-up/training. See Software-Tooling menu for details.

5. Once all items in No. 4 above are in place, fill in the cnc setup page request from the Pre-installation guide you received via email and fax it to us.

6. We will confirm the setup date(s) requested. Your cnc is expected to be ready for production at the end of the setup-training session.
