The Pegasus series is the Orion series' bigger brother that has all the features and functions as the Orion series but designed with heavier duty grantry and base frame construction with Fanuc controller that comes with two years warranty. It uses three 35~40mm square type linear guide bearings for every guide rail. With it's strong structure, the Z stroke can be up to 40", the table can be up to 10' wide by 40' long, up to eight (8) spindles and eight (8) servo drive tool changer system. Fully customizable with other spindle options below. For customers looking for the ultimate big boy's machine.

Select the Tabs menu for details

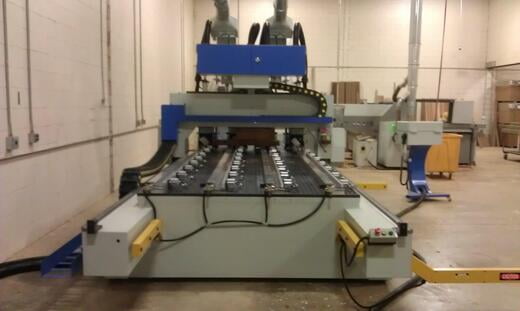

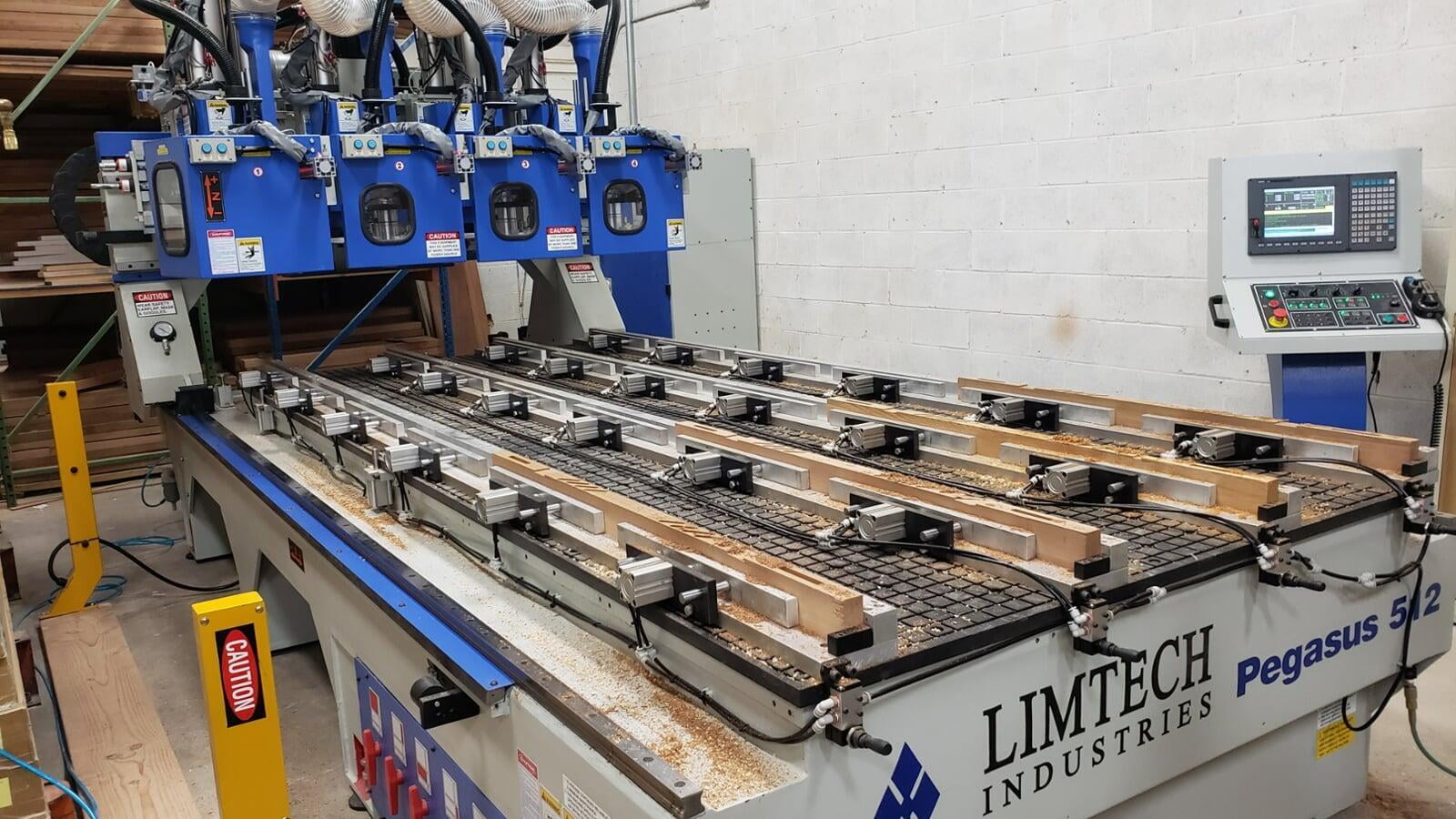

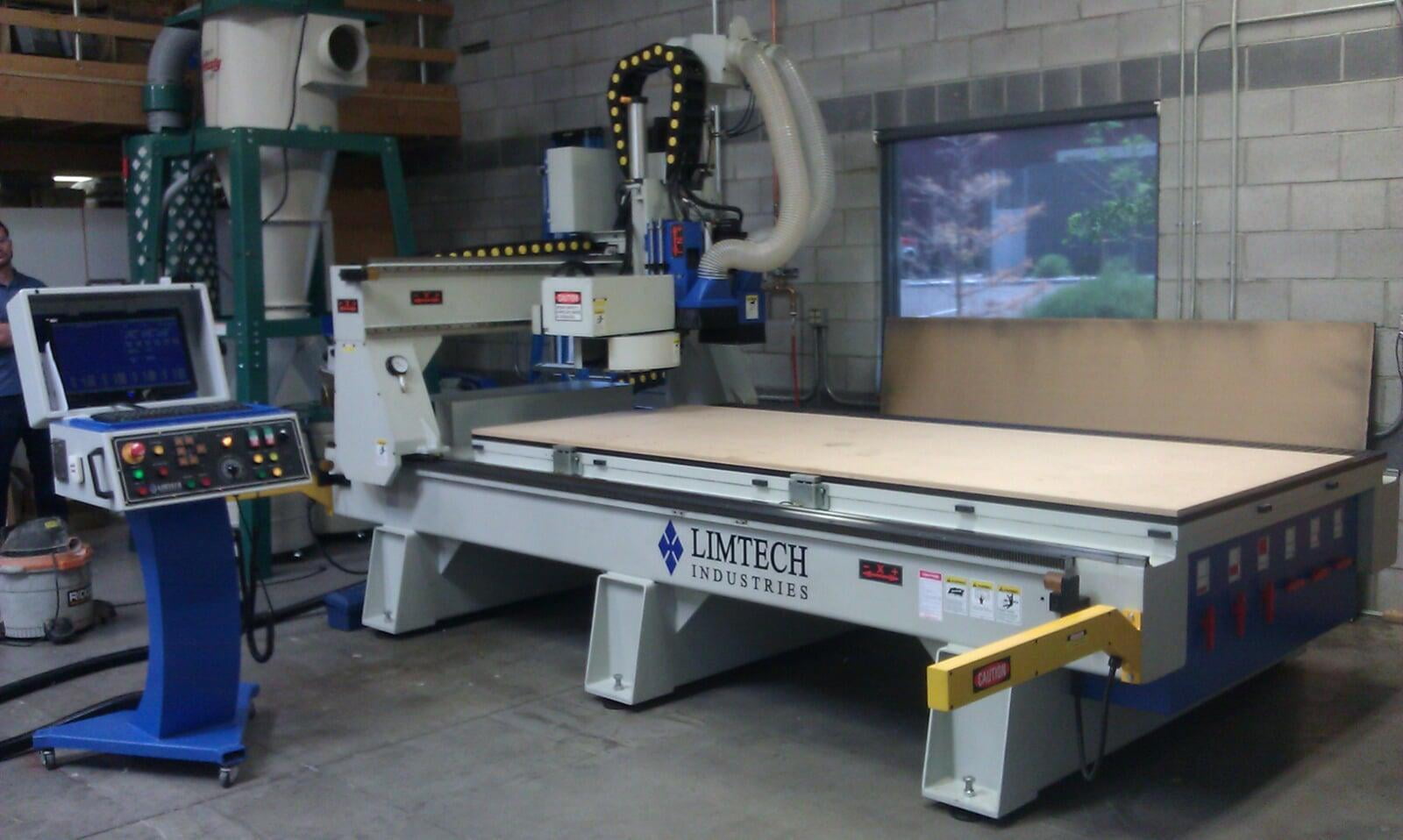

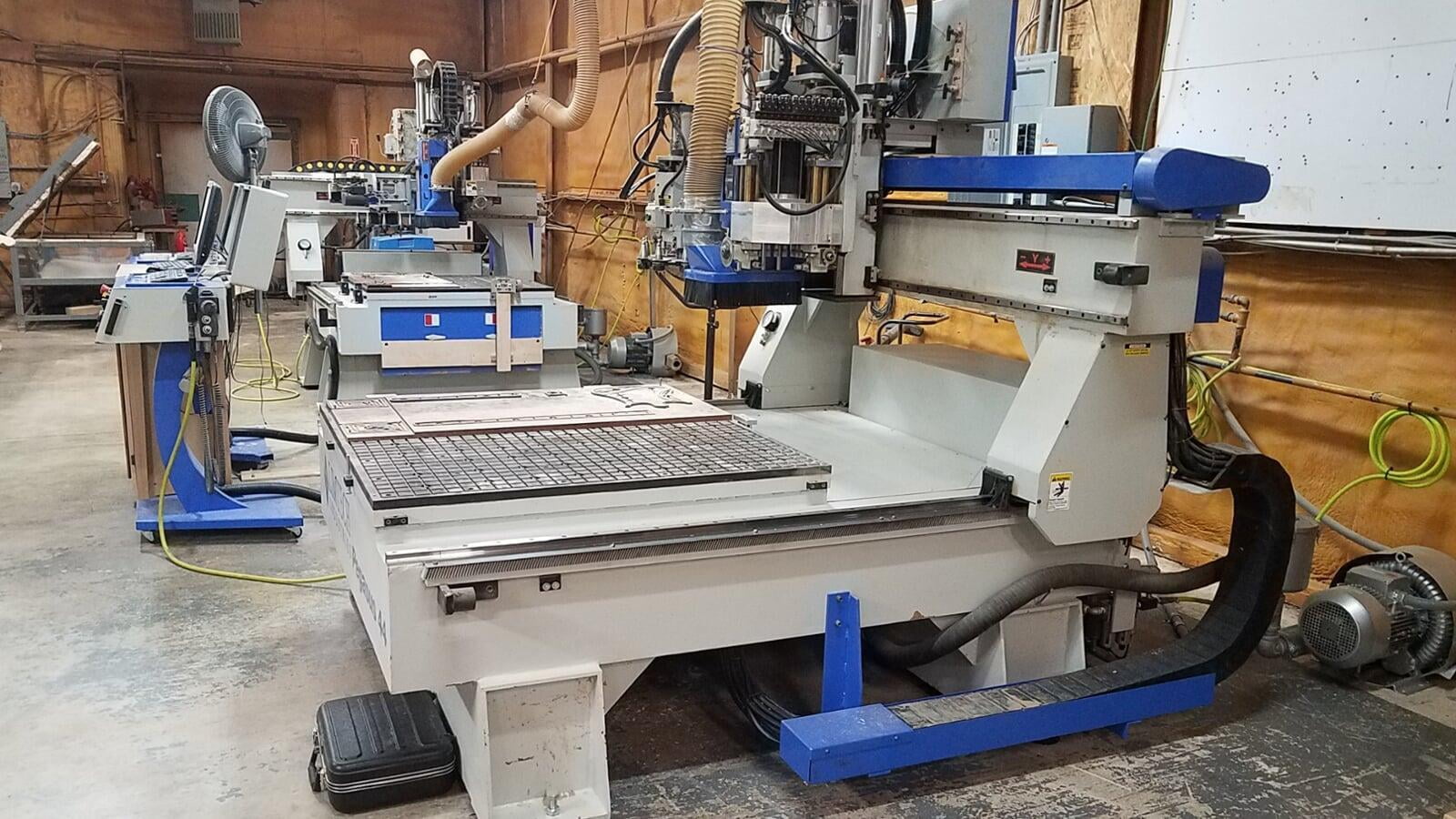

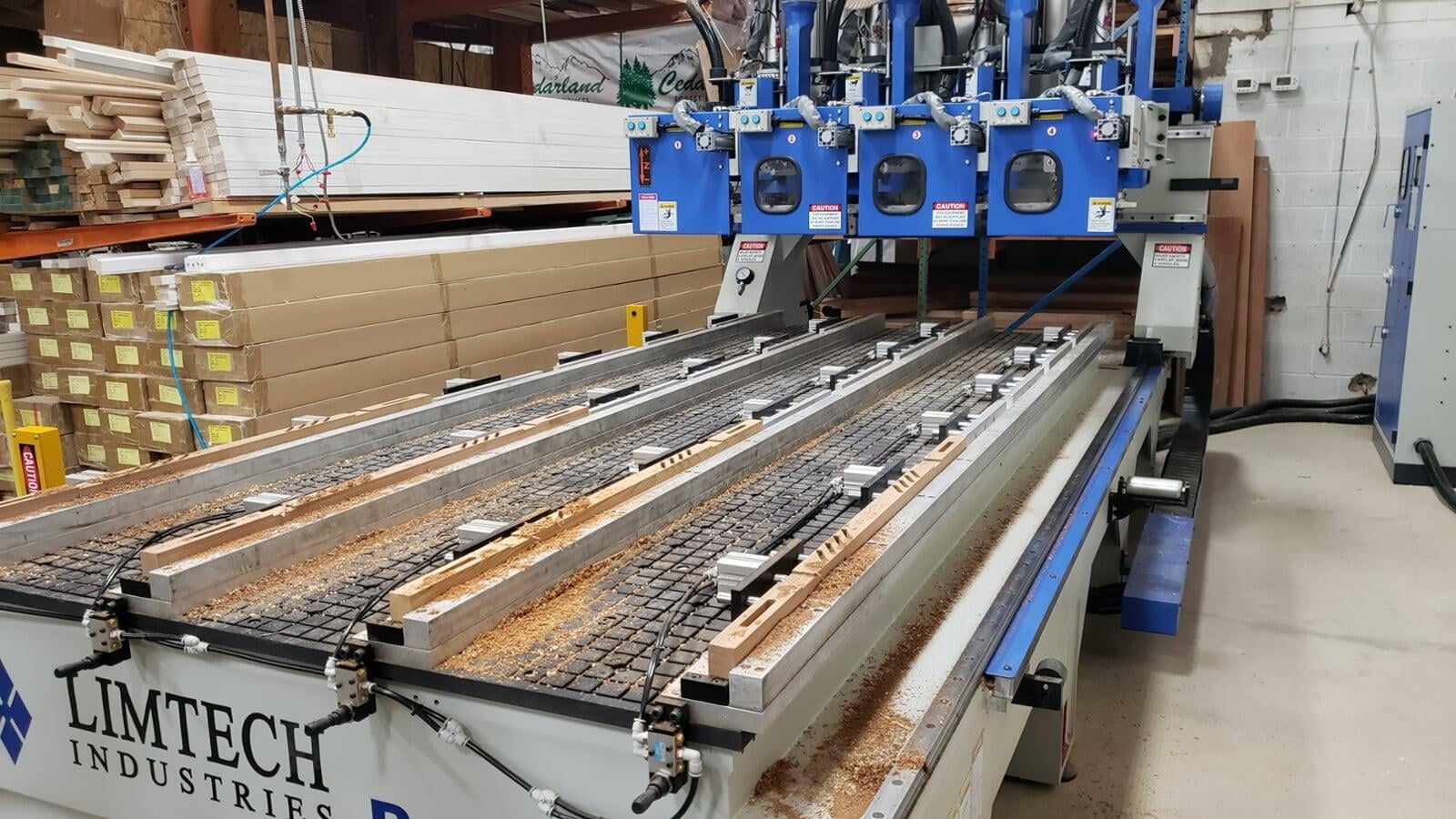

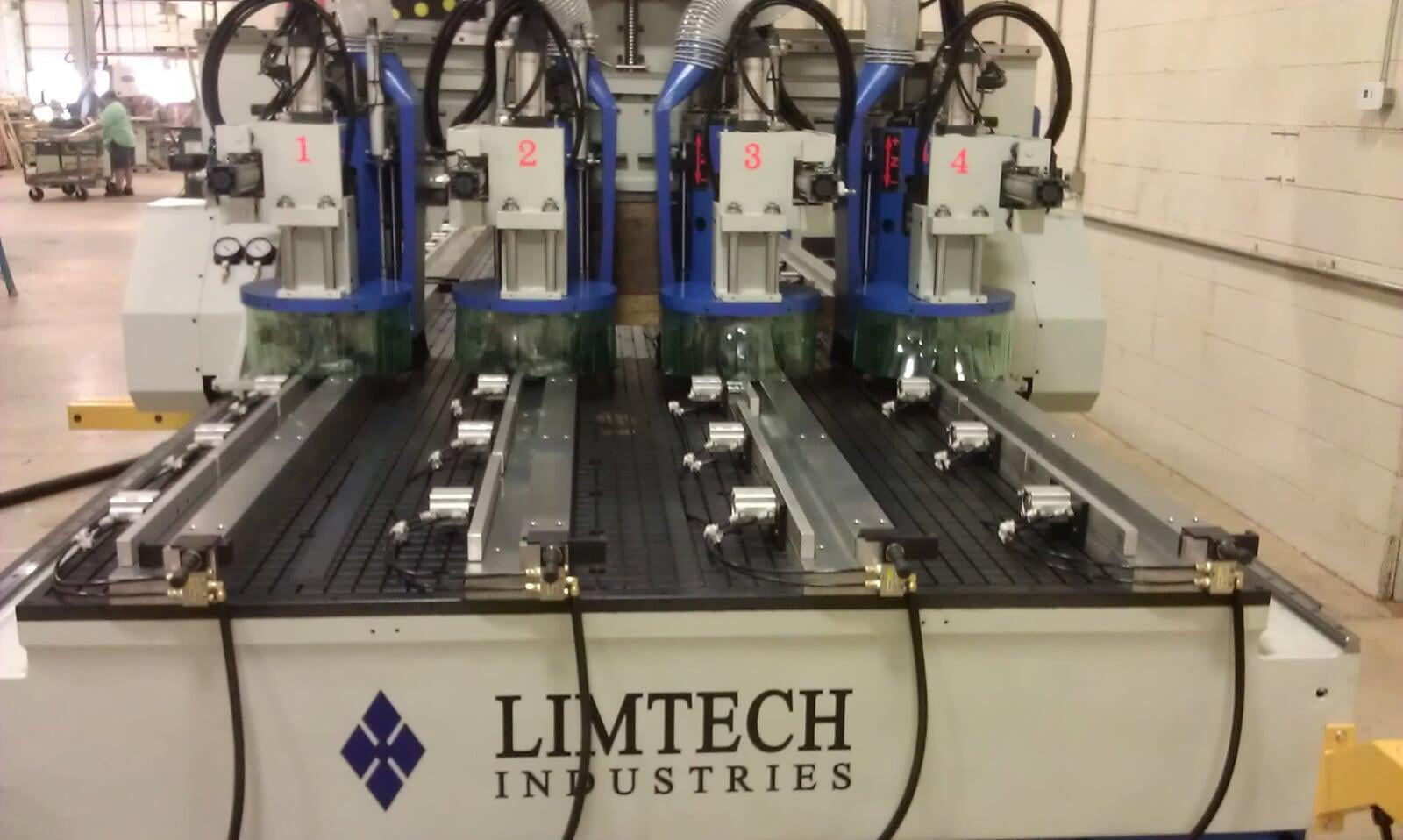

Customers Gallery-Videos
Vacuum Pump
Pre-Installation Guide
Customers Gallery-Videos

Standard Pegasus series Features & Options - subject to change without notice

 Steel chambers construction with finished grid vacuum phenolic table top
 Reference pins
Minimum of three (3) automatic table top reference pins for stock materials
 Vacuum zones
Common material sizes vacuum zone system for 5'x5', 4'x8', 5'x8', 5'x10' and a few other smaller sizes
Spindle No. 1
 HSD maintenance-free, air-cooled 12hp HSK 63F spindle with ER 32 collet system
 Spindle speed
From 1,000 ~ 24,000RPM in increment of 1,000
 Quick change-release
Spindle manual tool release and insertion
 Spindle brush
Automatic floating spindle brush design with manual brush override feature
 Manual operation
Manual spindle ON-OFF feature
Tool changer
 8-position carousel style automatic tool changer with servomotor/gearbox driven for fast tool change cycles
 Tool height calibration
Automatic tool height calibration and registration
 Vacuum pump
10hp vane type Becker pump with accessories
Fanuc controller features
 Non PC-Windows reliant, non proprietary software-hardware system
 Programming language
Standard G-code, works with any 3rd party software that generates G-codes
USB, Compact Flash Card & Ethernet
 Modes of operation
Automatic, MDI, Manual
 Manual Pulse Generator for fine manual movements during set-up, checking, and testing in automatic mode
 Automatic Homing
Automatic homing mode for individual or all axis with a push of a button
 Spindle override
Independent spindle RPM manually override during live operation
 Feed rate - Rapid override
Cut feed rate and positioning manually overrides during live operation
8" industrial monitor with current program check-monitoring system
Full alpha-numeric keypad with USB, Compact Flash Card, and Ethernet
 Work coordinate offsets
Global, G54 ~ G59 standard with G54P1 feature
 Tool height registrations
More than 100 tool height registrations offering full flexibility for programming assignments
 Tool diameter compensations
Tool diameter G41-G42 compensations, for customers using sharpened tools without having to re-program parts
 Canned cycle
 Canned cycles using canned cycle codes to shorten program lengths, especially with 32mm line boring system
 Onboard PLC diagnostics
For troubleshooting with I/O status
 Onboard parameters
For fine tuning or adjustments of the machine's performance and accuracy
Operators and Maintenance manuals
 System recovery
 Full system recovery provided during every new machine installation
Available Options
 32mm line boring
HSD 9-vertical drills on 32mm centers in L-shape configuration for X and Y axis drilling operations
 Drill spindle head
Vertical drills on 32mm centers, horizontal drills, saw blade attachments for X & Y axis operations
 Tool changer
Up to two 16-position carousel with servomotor/gearbox driven, one on each side of the spindle
Up to eight (8) main spindles with eight (8) servomotor/gearbox driven tool changers onboard
Horizontal spindle
 90 degrees industrial spindle rotation for heavy horizontal milling and drilling
 Aluminum table top
Aluminum grid vacuum table top, or vacuum & coolant combination for aluminum applications
 Coolant misting
Automatic coolant misting system via M-codes with volume flow control for aluminum applications
360 degrees spindle rotation for aggregates applications with separate aggregate tool change stations
 Table size
Up to 10' wide and 40' long with Z stroke up to 40".
Roller Hold Down
 Roller hold down combined with vacuum hold down system for frame manufacturers
Full automatic loading table-picker, rake-vacuum, unloading conveyor table system
Vacuum pump
 Up to two 10hp Becker pumps stack on rack per 5'x10' table size machine, or larger vacuum pump

Standard Pegasus series specifications - subject to change without notice

Frame construction
 Welded structural steel, heat treated and stress relieved for rigidity and stability
Drive configuration
Dual 1.8Kw Fanuc servomotor with planetary gearbox and helical rack-pinion system
1.8Kw Fanuc servomotor with planetary gearbox and helical-pinion system
 1.5Kw Fanuc servomotor with 32mm ballscrew
Linear guide rails

Hiwin-Abba 35mm square type
Hiwin-Abba 35mm square type
Hiwin-Abba 30mm square type
Axis field stroke

 Full-beyond table coverage
Full-beyond table coverage
Up to 400mm (15.750")
Cable protection
 Enclosed cable chain tracks to prevent dust, wood and metal chips from damaging the cables
Maximum cut feed rate
 Up to 800 inch/min
Maximum rapid-traverse rate
Up to 2,200 inch/min
Lubrication Automatic lubrication with volume and times frequency settings

Standard Pegasus series shipping & floor plan info - subject to change without notice

 Pegasus 48 (4'x8' table size)
Pegasus 510 (5'x10' table size)Pegasus 512 (5'x12' table size)
Weight (approx)
 Gross weight
9,500 lbs.
12,500 lbs.
13,500 lbs.
Net weight
 9,000 lbs.
 12,000 lbs
 13,000 lbs
 Dimensions (inches)
 Shipping (LxWxH)
 144 x 80 x 96"
 168 x 92 x 96"
 192 x 92 x 96"
 Floor plan
Pegasus 48 download
Pegasus 510 download
Pegasus 512 download
 Dust extraction
 Incoming flex hose diameter
6" for single spindle, 8" two spindles
6" for single spindle, 8" two spindles6" for single spindle, 8" two spindles
 Volume recommended
3,000 ~ 4,000 Cfm
3,000 ~ 4,000 Cfm3,000 ~ 4,000 Cfm
Power & Air requirements
 Machine: 220V, 3-phase
 50Amp, consumption approx 40Amp
50Amp, consumption approx 40Amp50Amp, consumption approx 40Amp
 Machine: Dry air
90Psi @ 16Cfm consumption rate
90Psi @ 16Cfm consumption rate90Psi @ 16Cfm consumption rate
 Vacuum pump: 220V, 3-phase
10hp @35Amp
10hp @35Amp
10hp @35Amp
Vacuum Pump

The Becker 10hp pump with accessories comes standard with our Orion and Pegasus series. It has approx 17Cf with approx. 20Hg fully sealed.

In the case where a second pump is ordered, or comes standard with a our 23' table machines, the two pumps are stacked on top of each other on a steel frame to save space.
Pre-Installation Guide

ALL new customers will receive detail Pre-installation manual/guide well in advanced covering delivery schedule, preparations and requirements.

However, below are some basic steps for reference only.

1. You will be informed in advanced regarding your cnc delivery schedule.

2. If required, you must schedule a rigger to be onsite to unload and position the cnc into your facility

3. Once the cnc is in place, you must arrange for the power, air, dust extraction to be connected to the cnc. See Specifications tab above for details.

4. Ensure that you have the software, tooling, materials available for the cnc set-up/training. See Software-Tooling menu for details.

5. Once all items in No. 4 above are in place, fill in the cnc setup page request from the Pre-installation guide you received via email and fax it to us.

6. We will confirm the setup date(s) requested. Your cnc is expected to be ready for production at the end of the setup-training session.
